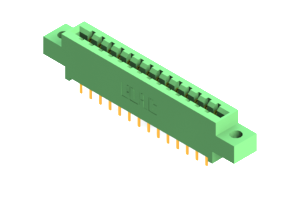

337-028-520-804
Card Edge Connector
The 337-028-520-804 Card Edge Connector, a crucial component for seamless board-to-board PCB connections. Engineered for high performance, this connector features two rows of 28 positions, ensuring efficient data transmission. The housing is constructed of UL 94V-0 Thermoplastic Polyester, guaranteeing durability and safety. With a contact material of Copper Alloy and a pitch of .156 inches, conductivity is optimized. The green color coding and straight mount orientation make for easy identification and installation. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector is reliable in any environment. Perfect for a wide range of applications, the 337-028-520-804 is a must-have for any electronic system in need of secure and efficient card edge connections.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-028-520-804 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 28 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-028-520-804 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
