| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-028-500-207 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 28 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 28 |
| Termination Method: | Wire Hole |
| Insulation Material: | Diallyl Phthalate |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-028-500-207 |
337-028-500-207
| ICC Number: | EDA337-028-500-207 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-028-500-207 |
| ECAD Model: | |
Specifications
Detailed Description

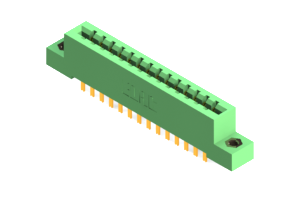

Introducing the 337-028-500-207, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections in electronic systems. With a vibrant Green color, this connector features two rows of 28 positions, allowing for efficient data and power transmission. Crafted with a durable UL 94V-0 Thermoplastic Polyester housing and Copper Alloy contacts, it ensures reliable connectivity in a wide temperature range from -40 to 105 °C. Operating at a maximum amperage of 3 A, it is suitable for various applications. With a pitch of .156 inches and row spacing of .2 inches, it offers precise alignment and secure mounting. Trust in the 337-028-500-207 for robust and efficient card edge connections in your projects.
