| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-027-558-108 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 27 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Screw Mount |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Mounting Angle: | Right Angle |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 27 |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-027-558-108 |
337-027-558-108
| ICC Number: | EDA337-027-558-108 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-027-558-108 |
| ECAD Model: | |
Specifications
Detailed Description

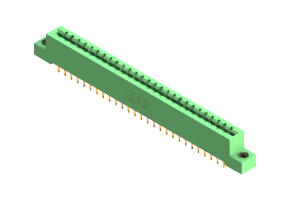

Introducing the 337-027-558-108 Card Edge Connector, a vital component for seamless board-to-board PCB connections. Engineered for high performance, this connector boasts a sleek green design and is crafted from durable UL 94V-0 Thermoplastic Polyester. With one row and 27 positions, it ensures efficient connectivity in compact spaces. The copper alloy contact material guarantees reliable signal transmission, while its low pitch of .156 inches and row spacing of .2 inches optimize data transfer. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector is a dependable solution for your electronic projects. Upgrade to the 337-027-558-108 and experience superior quality in every connection.
