| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-027-542-101 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 27 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 27 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-027-542-101 |
337-027-542-101
| ICC Number: | EDA337-027-542-101 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-027-542-101 |
| ECAD Model: | |
Specifications
Detailed Description

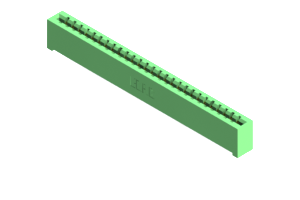

Introducing the 337-027-542-101 Card Edge Connector, a vital component for seamless board-to-board PCB connectivity. This green connector, featuring a single row with 27 positions, is engineered for high performance in demanding environments. With a sturdy housing made of UL 94V-0 rated thermoplastic polyester and copper alloy contacts, it ensures reliable power and signal transmission. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector is suitable for a wide range of applications. Its .156-inch pitch and .2-inch row spacing, along with a straight mount orientation, facilitate easy and secure installation. Trust in the 337-027-542-101 for efficient and durable connectivity in your electronic systems.
