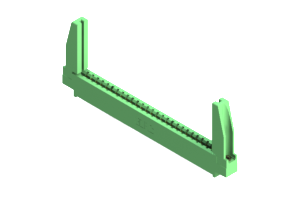

337-027-521-678
Card Edge Connector
The 337-027-521-678 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector is designed for durability, with a housing made of UL 94V-0 Thermoplastic Polyester and copper alloy contacts, rated for up to 3 A of current. Featuring a single row of 27 positions and a pitch of .156 inches, it offers efficient signal transmission in a compact space. With a low operating temperature of -40°C and a high of 105°C, this connector is suitable for a wide range of environments. Its straight mount orientation and .2-inch row spacing make it easy to install and integrate into your PCB layout. Trust in the 337-027-521-678 for secure and seamless board-to-board connections in your electronic designs.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-027-521-678 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 27 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-027-521-678 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
