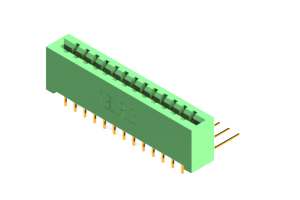

337-026-559-201
Card Edge Connector
The 337-026-559-201, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. Featuring a vibrant Green color for easy identification, this connector boasts a robust housing made of UL 94V-0 Thermoplastic Polyester, ensuring durability and safety. With two rows of Copper Alloy contacts, each rated for 3 A, it guarantees reliable power and signal transmission. The .156-inch pitch and .2-inch row spacing accommodate 26 positions, offering ample connectivity options. Engineered for versatility, its Right Angle mount orientation suits various PCB layouts. Operating flawlessly in harsh environments, it has a wide temperature range of -40 to 105 °C. Trust in the 337-026-559-201 for efficient and secure board-to-board connections in your electronic designs.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-026-559-201 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-026-559-201 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
