| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-026-558-158 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 26 |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| SKU: | EDA337-026-558-158 |
337-026-558-158
| ICC Number: | EDA337-026-558-158 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-026-558-158 |
| ECAD Model: | |
Specifications
Detailed Description

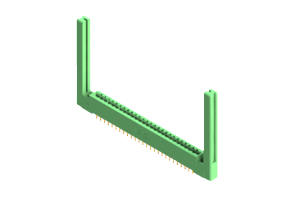

Introducing the 337-026-558-158 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This green connector boasts a single row design with 26 positions, featuring durable copper alloy contacts for reliable conductivity. With a low amperage rating of 3A and a pitch of .156 inches, it is ideal for various electronic applications. The housing is constructed from UL 94V-0 rated thermoplastic polyester, ensuring safety and durability. Designed for right-angle mounting, this connector operates efficiently in temperatures ranging from -40 to 105°C. Trust in the 337-026-558-158 for high-performance connectivity in your electronic devices.
