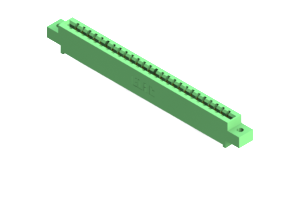

337-026-544-602
Card Edge Connector
The 337-026-544-602 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector is designed for durability, with a housing made of UL 94V-0 Thermoplastic Polyester and copper alloy contacts, rated for up to 3 A of current. With 26 positions in a single row and a pitch of .156 inches, it offers ample connectivity options for your projects. The straight mount orientation and compact design make it ideal for space-constrained applications. Operating seamlessly in temperatures ranging from -40 to 105 °C, this connector is suitable for a wide range of environments. Whether you're working on consumer electronics or industrial applications, the 337-026-544-602 is the perfect choice for reliable board-to-board connections.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-026-544-602 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-026-544-602 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
