| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-026-541-607 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 26 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-026-541-607 |
337-026-541-607
| ICC Number: | EDA337-026-541-607 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-026-541-607 |
| ECAD Model: | |
Specifications
Detailed Description

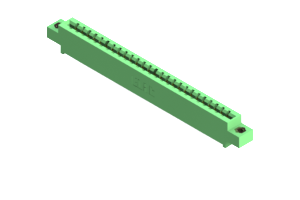

Introducing the 337-026-541-607 Card Edge Connector, a vital component for seamless board-to-board PCB connections. Engineered for high performance, this connector boasts a sleek green design and is meticulously crafted from UL 94V-0 Thermoplastic Polyester housing material, ensuring durability and safety. With a single row featuring 26 positions, it offers ample connectivity for your electronic devices. The contact material, made of robust Copper Alloy, guarantees reliable conductivity. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector is suitable for a wide array of environments. Trust in the 337-026-541-607 for efficient and secure PCB connections in your projects.
