| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-026-524-808 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 26 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-026-524-808 |
337-026-524-808
| ICC Number: | EDA337-026-524-808 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-026-524-808 |
| ECAD Model: | |
Specifications
Detailed Description

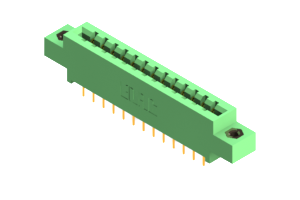

Introducing the 337-026-524-808 Card Edge Connector, a crucial component for seamless board-to-board PCB connections in electronic systems. This green connector, featuring two rows of 26 positions each, is designed for high performance with a low amperage of 3A. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and precision-machined copper alloy contacts, it ensures reliable conductivity in demanding operating environments ranging from -40 to 105°C. With a pitch of .156 inches and row spacing of .2 inches, this connector offers precise alignment and secure mounting in straight orientation. Trust in the 337-026-524-808 for efficient and dependable connectivity in your electronic applications.
