| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-026-524-607 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 26 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-026-524-607 |
337-026-524-607
| ICC Number: | EDA337-026-524-607 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-026-524-607 |
| ECAD Model: | |
Specifications
Detailed Description

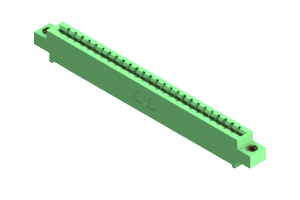

Introducing the 337-026-524-607, a high-performance Card Edge Connector designed for seamless board-to-board connections. Featuring 26 positions with a single row layout and a durable UL 94V-0 Thermoplastic Polyester housing, this connector ensures reliable performance in a variety of applications. Crafted with copper alloy contacts and rated for 3A, it guarantees efficient power transmission. With a pitch of .156 inches and a row spacing of .2 inches, it offers precise and secure connectivity. Its green color and straight mount orientation make it easy to identify and install. Operating flawlessly in temperatures ranging from -40 to 105°C, this connector is a dependable solution for your PCB connectivity needs.
