| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-026-524-107 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 26 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-026-524-107 |
337-026-524-107
| ICC Number: | EDA337-026-524-107 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-026-524-107 |
| ECAD Model: | |
Specifications
Detailed Description

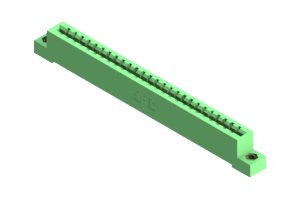

Introducing our 337-026-524-107 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector, featuring a single row of 26 positions with a pitch of .156 inches, is designed for seamless board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures longevity and excellent conductivity. With an amperage rating of 3A and an operating temperature range of -40 to 105°C, this connector is suitable for a wide range of applications. Its straight mount orientation and .2-inch row spacing make installation easy and efficient. Trust in the quality and performance of our 337-026-524-107 Card Edge Connector for your next project.
