| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-026-521-678 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 26 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-026-521-678 |
337-026-521-678
| ICC Number: | EDA337-026-521-678 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-026-521-678 |
| ECAD Model: | |
Specifications
Detailed Description

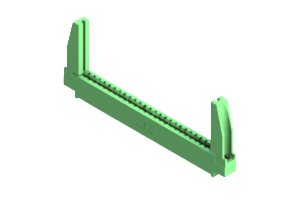

Introducing the 337-026-521-678 Card Edge Connector, a crucial component for seamless board-to-board PCB connections. This green connector, crafted from high-quality UL 94V-0 Thermoplastic Polyester, boasts a single row design with 26 positions for optimal connectivity. Each contact is made from durable copper alloy, ensuring reliable performance. With a low pitch of .156 inches and row spacing of .2 inches, this connector is perfect for compact electronic devices. Rated for an operating temperature range of -40 to 105 °C, it guarantees stable functionality even in harsh environments. Trust in the 337-026-521-678 for efficient and secure PCB connections in your electronic applications.
