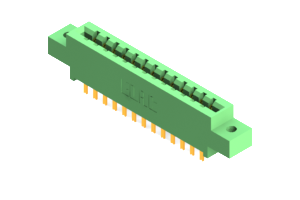

337-026-500-802
Card Edge Connector
The 337-026-500-802, a high-performance Card Edge Connector designed for seamless board-to-board connections. This two-row connector features 26 positions, each crafted with durable Copper Alloy contacts for optimal conductivity. The housing is constructed from UL 94V-0 Thermoplastic Polyester in a vibrant Green color, ensuring both safety and reliability. With a low pitch of .156 inches and row spacing of .2 inches, this connector offers precise and secure mating. Rated for 3A, it is suitable for various power and signal applications. Its straight mount orientation and wide operating temperature range of -40 to 105°C make it versatile for use in different environments. Trust in the 337-026-500-802 for efficient and dependable board connectivity.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-026-500-802 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-026-500-802 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
