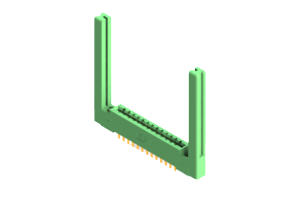

337-026-500-258
Card Edge Connector
The 337-026-500-258 Card Edge Connector, a vital component for seamless PCB connectivity. Designed for high performance, this connector features two rows of 26 positions, with a pitch of .156 inches and row spacing of .2 inches for efficient data transmission. Crafted from durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable conductivity in demanding environments. With a low operating temperature of -40°C and a maximum of 105°C, it guarantees stability under varying conditions. The green color coding and straight mount orientation make for easy identification and installation. Trust in the 337-026-500-258 for secure and efficient board-to-board connections in your electronic applications.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-026-500-258 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-026-500-258 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
