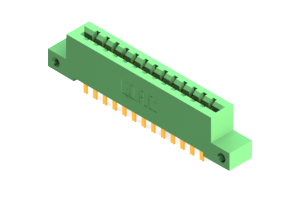

337-026-500-212
Card Edge Connector
The 337-026-500-212 Card Edge Connector, a vital component for seamless board-to-board PCB connections in electronic devices. This two-row connector boasts 26 positions, each ensuring reliable signal transmission with a pitch of .156 inches. Crafted with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it guarantees high performance even in harsh operating conditions ranging from -40 to 105°C. With a current rating of 3A, this green-colored connector offers exceptional conductivity and signal integrity. Its straight mount orientation and .2-inch row spacing make it easy to integrate, ideal for a wide range of applications in the electronics industry. Trust in the 337-026-500-212 for efficient and secure board connectivity.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-026-500-212 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-026-500-212 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
