| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-025-559-658 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 25 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Mounting Angle: | Right Angle |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 25 |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-025-559-658 |
337-025-559-658
| ICC Number: | EDA337-025-559-658 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-025-559-658 |
| ECAD Model: | |
Specifications
Detailed Description

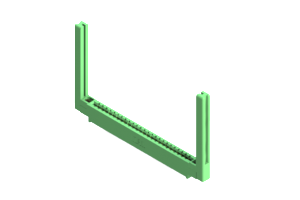

Introducing the 337-025-559-658 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector, featuring a single row design with 25 positions, is built to handle up to 3A of current, making it ideal for various electronic applications. Constructed with UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures durability and excellent conductivity. With a pitch of .156 inches and right-angle mount orientation, it offers easy and secure installation. Operating seamlessly in temperatures ranging from -40 to 105°C, this connector is suitable for demanding environments. Trust in the 337-025-559-658 for efficient board-to-board connectivity in your projects.
