337-025-558-668

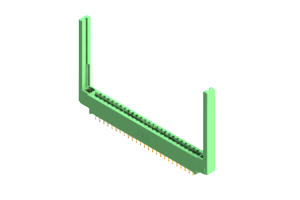

Card Edge Connector
The 337-025-558-668, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. Crafted with precision and durability in mind, this connector features 25 positions in a single row, accommodating a pitch of .156 inches. Constructed with a robust UL 94V-0 Thermoplastic Polyester housing and copper alloy contact material, it ensures reliable conductivity in demanding operating environments. With a low amperage rating of 3A and a wide operating temperature range of -40 to 105°C, this green connector is suitable for a variety of applications. Its right-angle mount orientation and .2-inch row spacing offer versatility in installation, making it an essential component for your connectivity needs. Trust in the 337-025-558-668 for efficient and secure board-to-board connections in your electronic systems.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-025-558-668 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 25 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-025-558-668 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
