| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-559-208 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-559-208 |
337-024-559-208
| Heilind Number: | EDA337-024-559-208 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-559-208 |
| ECAD Model: | |
Description:

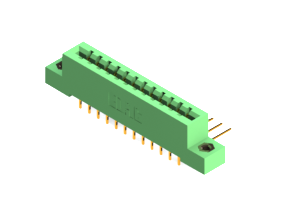

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .150" (2.54mm x 3.81mm)) in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with #4-40 Unified Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-024-559-208, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a vibrant Green color and crafted from durable UL 94V-0 Thermoplastic Polyester, this connector ensures reliable performance even in demanding environments. Featuring two rows of 24 Copper Alloy contacts, with a pitch of .156 inches and row spacing of .2 inches, it guarantees secure and efficient connectivity. Rated for 3A, and with an operating temperature range of -40 to 105°C, it is suitable for a wide range of applications. Its Right Angle mount orientation offers flexibility in installation. Trust in the 337-024-559-208 for robust and dependable connections in your electronic systems.
