| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-559-203 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-559-203 |
337-024-559-203
| Heilind Number: | EDA337-024-559-203 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-559-203 |
| ECAD Model: | |
Description:

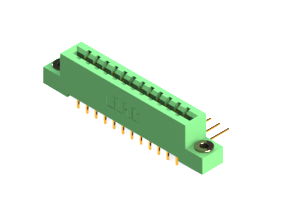

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .150" (2.54mm x 3.81mm)) in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing our 337-024-559-203 Card Edge Connector, a crucial component for seamless board-to-board PCB connections in your electronic devices. This green connector, constructed with high-quality UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, ensures reliable performance in demanding environments. With two rows of 24 positions and a pitch of .156 inches, it offers ample connectivity for your circuitry. The right-angle mount orientation allows for space-saving installation, while its operating temperature range of -40 to 105 °C guarantees functionality in a variety of conditions. Trust in the 337-024-559-203 for efficient and durable interconnect solutions in your design projects.
