337-024-558-658

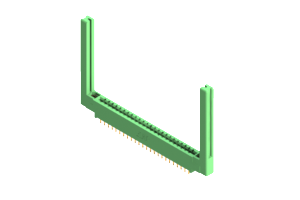

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .200" (2.54mm x 5.08mm)) in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with .468" (11.89mm) Offset Card Guides.
The 337-024-558-658, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a sleek green housing constructed from UL 94V-0 Thermoplastic Polyester, this connector ensures durability and reliability in any application. Featuring a single row design with 24 positions and a contact material of Copper Alloy, it guarantees efficient power and signal transmission. The .156 inch pitch and .2 inch row spacing, along with a right-angle mount orientation, offer versatility and ease of installation. Operating flawlessly in a wide temperature range from -40 to 105 °C, this connector is perfect for various industrial and commercial projects. Trust in the 337-024-558-658 for superior connectivity performance.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-558-658 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-558-658 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
