337-024-556-878

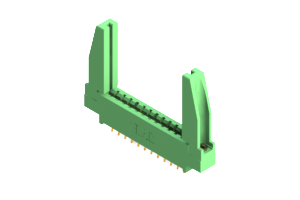

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 Extender Board Tail Bend (Contact Code 520 bent to have .170" (4.32mm) tail length) in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with In-Line Card Guides.
The 337-024-556-878, a high-performance Card Edge Connector designed for seamless board-to-board connectivity in electronic systems. With a vibrant Green color, this connector not only stands out visually but also offers superior functionality. Operating at an amperage of 3 A, it ensures reliable power transmission. Crafted from UL 94V-0 Thermoplastic Polyester housing material and featuring Copper Alloy contacts, this connector guarantees durability and efficient signal transfer. With two rows and 24 positions, it provides ample connectivity options. The .156-inch pitch and .2-inch row spacing allow for easy installation. Its straight mount orientation is perfect for various PCB layouts. Tested for quality and performance, this connector has an operating temperature range of -40 to 105 °C, making it suitable for a wide range of applications. Upgrade your system's connectivity with the 337-024-556-878 Card Edge Connector.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-556-878 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-556-878 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
