| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-556-208 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-556-208 |
337-024-556-208
| Heilind Number: | EDA337-024-556-208 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-556-208 |
| ECAD Model: | |
Description:

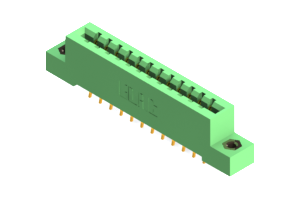

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 Extender Board Tail Bend (Contact Code 520 bent to have .170" (4.32mm) tail length) in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with #4-40 Unified Threaded Inserts.
More >>Specifications
Detailed Description
Introducing our Green Card Edge Connector, featuring a durable housing constructed of UL 94V-0 Thermoplastic Polyester for enhanced safety and performance. With two rows of Copper Alloy contacts, this connector ensures reliable connectivity with a pitch of .156 inches and 24 positions. Its straight mount orientation offers easy installation, while its wide operating temperature range of -40 to 105°C guarantees suitability for various environments. Perfect for high-speed data transmission and power applications, this connector is a versatile and dependable solution for your PCB connectivity needs.
