| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-544-807 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 24 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-024-544-807 |
337-024-544-807
| ICC Number: | EDA337-024-544-807 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-544-807 |
| ECAD Model: | |
Description:

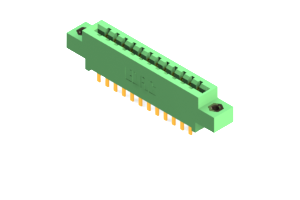

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with M3-0.5 Metric Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-024-544-807, a high-performance Card Edge Connector designed for seamless board-to-board connections. This two-row connector features 24 positions, allowing for efficient data transfer in a compact space. With a pitch of .156 inches and row spacing of .2 inches, it offers precise alignment for seamless integration. Crafted with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector ensures reliable conductivity even in harsh environments. Rated for 3A, it guarantees efficient power delivery while operating flawlessly in temperatures ranging from -40 to 105°C. Perfect for a wide range of applications, the 337-024-544-807 is a dependable solution for your connectivity needs.
