| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-544-108 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-544-108 |
337-024-544-108
| Heilind Number: | EDA337-024-544-108 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-544-108 |
| ECAD Model: | |
Description:

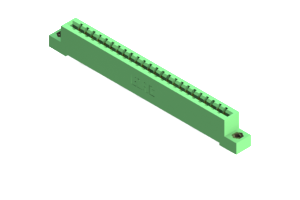

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with #4-40 Unified Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-024-544-108, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. With a vibrant Green color, this connector adds a pop of visual interest to any electronic assembly. Engineered for reliability, it boasts a low amperage of 3A, making it ideal for various applications. The housing is constructed from UL 94V-0 Thermoplastic Polyester, ensuring durability and safety. Featuring a single row with 24 copper alloy contacts, it offers efficient signal transmission. With a pitch of .156 inches and row spacing of .2 inches, precise connectivity is guaranteed. Its straight mount orientation and wide operating temperature range of -40 to 105°C further enhance its versatility. Trust in the 337-024-544-108 for robust and dependable card edge connections in your projects.
