| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-542-878 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-542-878 |
337-024-542-878
| Heilind Number: | EDA337-024-542-878 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-542-878 |
| ECAD Model: | |
Description:

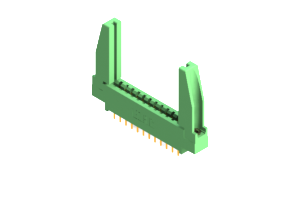

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .645" (16.38mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with In-Line Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-024-542-878, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a vibrant Green color and constructed from durable UL 94V-0 Thermoplastic Polyester, this connector ensures reliable performance in any setting. Featuring two rows of Copper Alloy contacts and a pitch of .156 inches, it offers secure and efficient connectivity. The 24 positions accommodate multiple signals, making it ideal for complex circuitry. Its straight mount orientation and wide operating temperature range of -40 to 105 °C further enhance its versatility. Trust the 337-024-542-878 for your connectivity needs, whether in consumer electronics, industrial machinery, or telecommunications systems.
