| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-542-107 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-542-107 |
337-024-542-107
| Heilind Number: | EDA337-024-542-107 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-542-107 |
| ECAD Model: | |
Description:

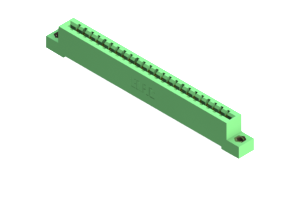

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .645" (16.38mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with M3-0.5 Metric Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-024-542-107, a high-performance Card Edge Connector designed for seamless board-to-board connectivity in electronic systems. Featuring a vibrant Green color for easy identification, this connector boasts a robust UL 94V-0 Thermoplastic Polyester housing, ensuring durability and reliability in all operating environments. With a single row configuration and 24 copper alloy contacts, it offers efficient power and signal transmission with a low amperage rating of 3 A. The .156-inch pitch and .2-inch row spacing allow for precise alignment and secure mating, while its straight mount orientation simplifies installation. Engineered for optimum performance, this connector is rated for an extended operating temperature range of -40 to 105 °C, making it ideal for a wide range of applications in various industries. Trust in the 337-024-542-107 for your board connectivity needs, where quality and performance meet with every connection.
