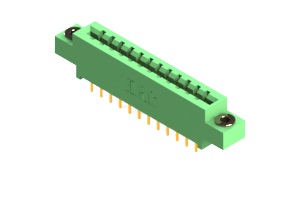

337-024-523-803
337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 P.C Tail type contacts. The tails are .025"Sq' (0.64mm Sq') and .390" (9.91mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
The 337-024-523-803, a reliable Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a vibrant Green color for easy identification, this connector boasts a sturdy UL 94V-0 Thermoplastic Polyester housing, ensuring durability and safety. Featuring two rows of high-quality Copper Alloy contacts, each rated for 3 A, it guarantees efficient power transmission. The .156-inch pitch and .2-inch row spacing accommodate 24 positions with precision, making it ideal for dense PCB layouts. Its straight mount orientation offers convenient installation, while its wide operating temperature range of -40 to 105 °C ensures performance in harsh environments. Trust in the 337-024-523-803 for your connectivity needs, a top-tier solution in the realm of Card Edge Connectors.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-523-803 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-523-803 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
