| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-523-658 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-523-658 |
337-024-523-658
| Heilind Number: | EDA337-024-523-658 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-523-658 |
| ECAD Model: | |
Description:

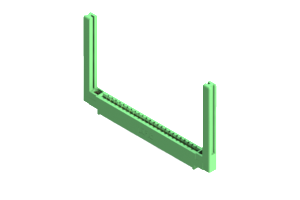

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 P.C Tail type contacts. The tails are .025"Sq' (0.64mm Sq') and .390" (9.91mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing our Card Edge Connector, featuring a sleek and durable design in a vibrant green hue. With an amperage of 3A, this connector is perfect for high-power applications. Constructed with UL 94V-0 Thermoplastic Polyester housing material and copper alloy contacts, it ensures reliable performance. Boasting a single row with 24 positions and a pitch of .156 inches, it offers seamless connectivity. The straight mount orientation and wide operating temperature range of -40 to 105°C make it versatile for various environments. Ideal for board-to-board PCB connections, this connector is a must-have for your electronic projects.
