| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-523-607 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 24 |
| Termination Method: | Solder |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-024-523-607 |
337-024-523-607
| ICC Number: | EDA337-024-523-607 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-523-607 |
| ECAD Model: | |
Description:

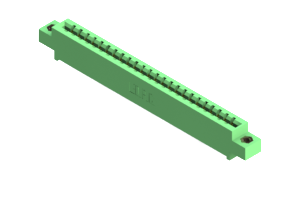

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 P.C Tail type contacts. The tails are .025"Sq' (0.64mm Sq') and .390" (9.91mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with M3-0.5 Metric Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-024-523-607, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a vibrant Green color and crafted from durable UL 94V-0 Thermoplastic Polyester housing material, this connector ensures reliable performance in any environment. Featuring a single row design with 24 positions, each contact is made from robust Copper Alloy for superior conductivity. The .156-inch pitch and .2-inch row spacing allow for easy and secure connections, while the straight mount orientation offers versatility in installation. Rated for an operating temperature range of -40 to 105 °C, this connector is ideal for a wide range of applications in various industries. Trust in the 337-024-523-607 for efficient and dependable board-to-board connectivity.
