| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-523-203 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-523-203 |
337-024-523-203
| Heilind Number: | EDA337-024-523-203 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-523-203 |
| ECAD Model: | |
Description:

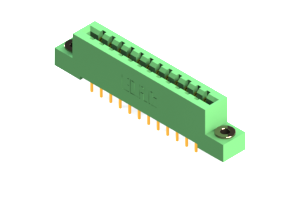

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 P.C Tail type contacts. The tails are .025"Sq' (0.64mm Sq') and .390" (9.91mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing our Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. Designed with precision and durability in mind, this connector features a housing made of UL 94V-0 Thermoplastic Polyester, ensuring safety and longevity. With two rows of copper alloy contacts, each spaced at .156 inches and .2 inches apart, it offers seamless and efficient board-to-board connections. The green color coding and straight mount orientation make it easy to install and integrate into your system. Rated for an operating temperature range of -40 to 105 °C and with a current rating of 3A, this connector is suitable for a wide range of applications. With 24 positions available, it provides ample connectivity options. Trust in the quality and performance of our Card Edge Connector for your next project.
