337-024-523-104

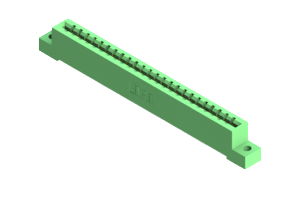

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 P.C Tail type contacts. The tails are .025"Sq' (0.64mm Sq') and .390" (9.91mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
The 337-024-523-104, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a vibrant Green color for easy identification, this connector boasts a robust housing made of UL 94V-0 Thermoplastic Polyester, ensuring durability and safety. Featuring a single row design and 24 gold-plated Copper Alloy contacts, it guarantees reliable power and signal transmission with a low amperage of 3 A. The .156-inch pitch and .2-inch row spacing offer precise alignment, while its Straight mount orientation allows for easy installation. Operating flawlessly in extreme temperatures ranging from -40 to 105 °C, this connector is a dependable solution for your PCB connectivity needs. Trust in the 337-024-523-104 for efficient and secure board-level connections in your electronic devices.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-523-104 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-523-104 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
