| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-521-207 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-521-207 |
337-024-521-207
| Heilind Number: | EDA337-024-521-207 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-521-207 |
| ECAD Model: | |
Description:

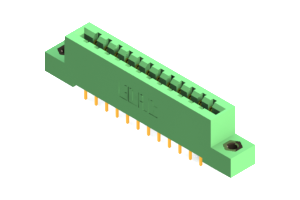

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 P.C Tail type contacts. The tails are .025"Sq' (0.64mm Sq') and .150" (3.81mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with M3-0.5 Metric Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-024-521-207 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This two-row connector features 24 positions, allowing for seamless board-to-board connections. Constructed with durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable operation in harsh environments. With a low 3A amperage and a pitch of .156 inches, it is perfect for delicate electronic applications. The connector offers straight mount orientation and operates flawlessly in temperatures ranging from -40 to 105°C. Trust in the 337-024-521-207 for efficient and secure card edge connections in your projects.
