| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-520-807 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-024-520-807 |
337-024-520-807
| Heilind Number: | EDA337-024-520-807 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-520-807 |
| ECAD Model: | |
Description:

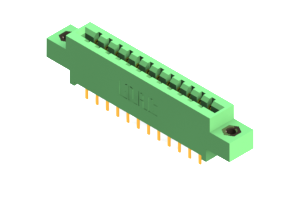

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 P.C Tail type contacts. The tails are .030" x .018" (0.76mm x 0.46mm) thick and .175" (4.45mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with M3-0.5 Metric Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-024-520-807, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a vibrant Green color and constructed from UL 94V-0 Thermoplastic Polyester, this connector ensures both durability and safety in any application. Featuring two rows of Copper Alloy contacts, each with a pitch of .156 inches and spaced .2 inches apart, it offers reliable connectivity for up to 24 positions. With a low amperage rating of 3A and an operating temperature range of -40 to 105°C, it is suitable for a wide range of electronic devices. Whether for industrial or consumer electronics, the 337-024-520-807 is the perfect choice for your connectivity needs.
