| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-024-500-212 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 24 |
| Number of Rows: | 2 |
| Termination Method: | Wire Hole |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Diallyl Phthalate |
| Row Spacing: | .2 in |
| Number of Positions: | 24 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-024-500-212 |
337-024-500-212
| ICC Number: | EDA337-024-500-212 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-024-500-212 |
| ECAD Model: | |
Description:

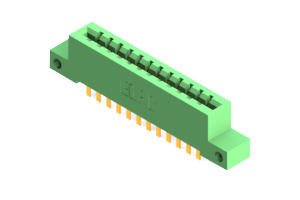

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 24 Wire Hole type contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .260" (6.60mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-024-500-212, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. With 24 positions arranged in 2 rows and a pitch of .156 inches, this green connector ensures reliable data and power transmission in your electronic systems. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it guarantees longevity and stability even in harsh operating conditions ranging from -40 to 105 °C. Boasting a current rating of 3A, it is suitable for a wide range of applications. Its straight mount orientation and .2-inch row spacing offer easy integration, making it a perfect choice for your connectivity needs. Trust in the 337-024-500-212 for efficient and secure board-to-board connections in your projects.
