| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-023-558-168 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 23 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-023-558-168 |
337-023-558-168
| Heilind Number: | EDA337-023-558-168 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-023-558-168 |
| ECAD Model: | |
Description:

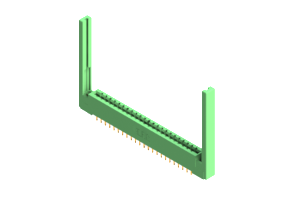

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 23 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .200" (2.54mm x 5.08mm)) in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .344" (8.74mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-023-558-168, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. This green connector, featuring a single row with 23 positions and a pitch of .156 inches, offers reliable power and signal transmission in a wide range of applications. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures robust performance even in harsh environments. With a low operating temperature of -40°C and a maximum of 105°C, this connector is suitable for use in various industrial settings. Its right-angle mount orientation and compact design make it ideal for space-constrained installations. Trust the 337-023-558-168 for efficient and secure connectivity in your electronic systems.
