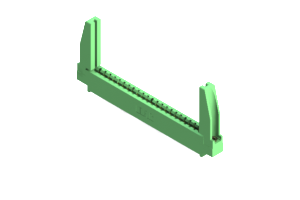

337-023-544-678
337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 23 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with In-Line Card Guides.
The 337-023-544-678 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This green connector, constructed with durable UL 94V-0 Thermoplastic Polyester housing material, is designed for reliable performance in a variety of applications. With a low amperage rating of 3A, it offers efficient power transmission while ensuring safety. The 23-position connector features copper alloy contacts for superior conductivity and longevity. Its .156-inch pitch and .2-inch row spacing allow for easy installation, with a straight mount orientation for added convenience. Operating flawlessly in temperatures ranging from -40 to 105°C, this connector is suitable for a wide range of environments. Trust in the 337-023-544-678 for seamless board-to-board connectivity in your projects.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-023-544-678 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 23 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-023-544-678 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
