| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-023-544-602 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 23 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-023-544-602 |
337-023-544-602
| Heilind Number: | EDA337-023-544-602 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-023-544-602 |
| ECAD Model: | |
Description:

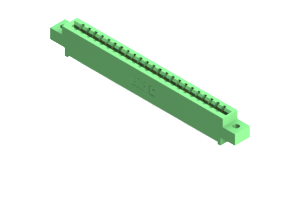

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 23 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-023-544-602, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a vibrant Green color and a single row layout, this connector is a sleek and efficient solution for your PCB needs. Boasting a robust housing made of UL 94V-0 Thermoplastic Polyester and copper alloy contacts, it ensures reliable conductivity in any application. With 23 positions and a pitch of .156 inches, it offers ample connectivity options with precise signal transmission. Its straight mount orientation and wide operating temperature range of -40 to 105 °C make it versatile for use in various environments. Trust in the 337-023-544-602 for durable and dependable card edge connections.
