| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-023-544-101 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 23 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-023-544-101 |
337-023-544-101
| Heilind Number: | EDA337-023-544-101 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-023-544-101 |
| ECAD Model: | |
Description:

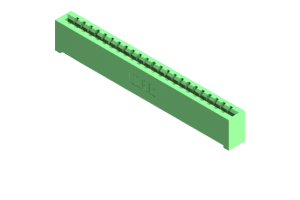

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 23 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Single Row formation. The Insulator is Green in color with No Mounting Lugs.
More >>Specifications
Detailed Description
Introducing the 337-023-544-101, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a vibrant Green color and a sleek housing made of UL 94V-0 Thermoplastic Polyester, this connector not only offers visual appeal but also ensures durability and safety. Featuring a single row design with 23 positions and a contact material of Copper Alloy, it guarantees reliable conductivity. The .156-inch pitch and .2-inch row spacing allow for easy and secure connections, while the straight mount orientation accommodates various PCB layouts. With an amperage rating of 3A and an operating temperature range of -40 to 105°C, this connector is suitable for a wide range of environments. Trust in the 337-023-544-101 for efficient and dependable board-to-board connectivity in your electronic systems.
