| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-023-523-104 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 23 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-023-523-104 |
337-023-523-104
| Heilind Number: | EDA337-023-523-104 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-023-523-104 |
| ECAD Model: | |
Description:

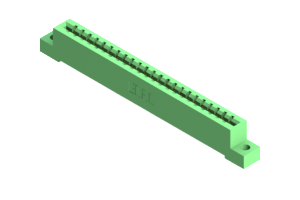

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 23 P.C Tail type contacts. The tails are .025"Sq' (0.64mm Sq') and .390" (9.91mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-023-523-104 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This green connector boasts a durable housing made of UL 94V-0 Thermoplastic Polyester, ensuring reliable performance in any environment. With one row of 23 copper alloy contacts, it offers ample connectivity for your applications. The .156-inch pitch and .2-inch row spacing make for easy installation, while its straight mount orientation accommodates various PCB layouts. Rated for an operating temperature range of -40 to 105°C, this connector is suitable for a wide range of industries. Whether you're designing consumer electronics or industrial equipment, the 337-023-523-104 guarantees dependable power and signal transmission. Upgrade your PCB designs with this high-quality card edge connector.
