| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-023-520-112 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 23 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 23 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-023-520-112 |

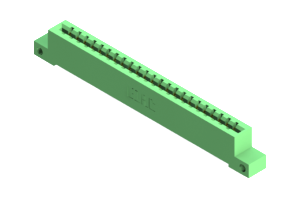

337-023-520-112
| ICC Number: | EDA337-023-520-112 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-023-520-112 |
| ECAD Model: | |
Description:
337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 23 P.C Tail type contacts. The tails are .030" x .018" (0.76mm x 0.46mm) thick and .175" (4.45mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-023-520-112, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a sleek green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and safety in operation. Boasting a single row design and 23 positions, it offers ample connectivity for various applications. The contact material, crafted from Copper Alloy, guarantees reliable signal transmission. With a pitch of .156 inches and a row spacing of .2 inches, precise and secure connections are achieved. Operating flawlessly in temperatures ranging from -40 to 105°C, this connector is suitable for a wide range of environments. Whether for industrial machinery or consumer electronics, the 337-023-520-112 is the perfect choice for your connectivity needs.
