| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-022-558-604 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 22 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-022-558-604 |

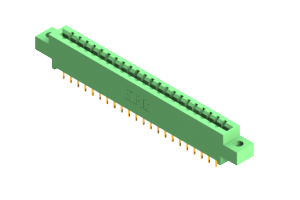

337-022-558-604
| Heilind Number: | EDA337-022-558-604 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-022-558-604 |
| ECAD Model: | |
Description:
337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 22 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .200" (2.54mm x 5.08mm)) in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-022-558-604, a high-performance Card Edge Connector designed for seamless board-to-board PCB connectivity. This green connector boasts a durable housing made of UL 94V-0 Thermoplastic Polyester, ensuring reliability in various operating environments. With a single row layout and 22 positions, it offers ample connectivity options with a pitch of .156 inches and row spacing of .2 inches. Crafted with copper alloy contacts, it guarantees efficient signal transmission with a current rating of 3 A. Its right-angle mount orientation allows for space-saving installation, ideal for compact electronic applications. Engineered for durability, it operates flawlessly in temperatures ranging from -40 to 105 °C. Trust in the 337-022-558-604 for robust and dependable card edge connectivity in your PCB designs.
