337-022-558-208

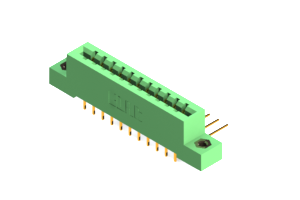

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 22 90 Deg' Tail Bend (Contact Code 541 bent to have a pitch of .100" x .200" (2.54mm x 5.08mm)) in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with #4-40 Unified Threaded Inserts.
The 337-022-558-208, a high-performance Card Edge Connector designed for seamless board-to-board connectivity in electronic systems. With a vibrant Green color and crafted from durable UL 94V-0 Thermoplastic Polyester, this connector ensures both reliability and safety in operation. Featuring two rows of 22 Copper Alloy contacts, each rated for 3 A, it guarantees efficient power and signal transmission. The .156-inch pitch and .2-inch row spacing allow for easy integration, while the Right Angle mount orientation offers versatility in assembly. Operating flawlessly in temperature ranges from -40 to 105 °C, this connector is ideal for a wide range of applications in various industries. Trust in the 337-022-558-208 for secure and dependable board connectivity.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-022-558-208 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 22 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-022-558-208 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
