| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-022-555-858 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 22 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-022-555-858 |
337-022-555-858
| Heilind Number: | EDA337-022-555-858 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-022-555-858 |
| ECAD Model: | |
Description:

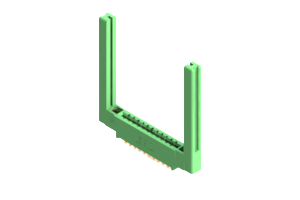

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 22 Extender Board Tail Bend (Contact Code 500 bent to have .245" (6.22mm) tail length) in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with .468" (11.89mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-022-555-858 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This two-row connector features 22 positions, with a pitch of .156 inches and row spacing of .2 inches, allowing for secure and efficient board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector ensures longevity and stability in demanding environments. With an operating temperature range of -40 to 105 °C, it is suitable for a wide range of applications. Trust in the quality and performance of the 337-022-555-858 for your next project.
