| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-022-544-108 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 22 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-022-544-108 |
337-022-544-108
| Heilind Number: | EDA337-022-544-108 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-022-544-108 |
| ECAD Model: | |
Description:

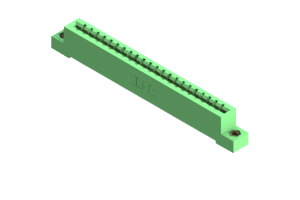

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 22 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with #4-40 Unified Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-022-544-108, a high-performance Card Edge Connector designed for seamless board-to-board connections. Featuring a sleek green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures reliable performance in any application. With a single row and 22 positions, it offers ample connectivity for your needs. The copper alloy contacts with a pitch of .156 inches guarantee secure and efficient data transfer. Engineered for durability, it operates flawlessly in temperatures ranging from -40 to 105 °C. Trust in the 337-022-544-108 for all your card edge connection requirements.
