| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-022-544-103 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 22 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-022-544-103 |
337-022-544-103
| Heilind Number: | EDA337-022-544-103 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-022-544-103 |
| ECAD Model: | |
Description:

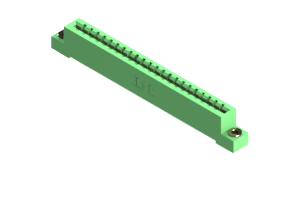

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 22 Wire Wrap contacts. The tails are .050" x .025" (1.27mm x 0.64mm) thick and .750" (19.05mm) long in a Single Row formation. The Insulator is Green in color and has Flush Mounting Lugs with
More >>Specifications
Detailed Description
Introducing our Card Edge Connector, SKU 337-022-544-103, a vital component for seamless board-to-board PCB connections. This green connector, made of high-quality UL 94V-0 Thermoplastic Polyester, features a single row with 22 positions for efficient data transmission. Crafted with durable copper alloy contacts, it ensures reliable conductivity. With a low amperage rating of 3A and a pitch of .156 inches, this connector is ideal for compact electronic devices. Its straight mount orientation and wide operating temperature range of -40 to 105°C offer versatility in various applications. Trust in the quality and performance of this essential connector for your electronic projects.
