| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-022-540-812 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 22 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-022-540-812 |
337-022-540-812
| Heilind Number: | EDA337-022-540-812 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-022-540-812 |
| ECAD Model: | |
Description:

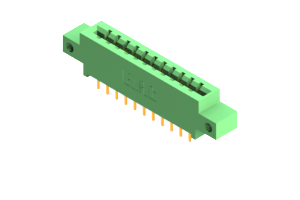

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 22 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .560" (14.22mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-022-540-812, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic devices. This green connector features a robust UL 94V-0 Thermoplastic Polyester housing, ensuring durability and reliability in various applications. With two rows of 22 copper alloy contacts, it offers secure and efficient power transmission with a rating of 3A. The .156-inch pitch and .2-inch row spacing allow for easy installation, while the straight mount orientation saves space on the PCB. Operating flawlessly in extreme temperatures ranging from -40 to 105°C, this connector is perfect for demanding environments. Upgrade your connectivity with the 337-022-540-812 for uncompromising performance.
