| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-022-524-602 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 22 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-022-524-602 |
337-022-524-602
| Heilind Number: | EDA337-022-524-602 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-022-524-602 |
| ECAD Model: | |
Description:

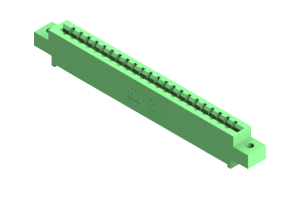

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 22 P.C Tail type contacts. The tails are .018"Sq' (0.46mm Sq') and .175" (4.45mm) long in a Single Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with
More >>Specifications
Detailed Description
Introducing the 337-022-524-602 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This green connector, featuring a single row design with 22 positions, is crafted from durable UL 94V-0 Thermoplastic Polyester housing material for reliable performance. Its copper alloy contact material ensures efficient power transmission, with a low 3A amperage. The .156-inch pitch and .2-inch row spacing allow for easy integration, while its straight mount orientation offers versatility in placement. Operating flawlessly in temperatures ranging from -40 to 105°C, this connector is ideal for a wide range of applications in the electronics industry. Trust in the 337-022-524-602 for seamless board-to-board connectivity.
