| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-022-524-208 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 22 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-022-524-208 |
337-022-524-208
| Heilind Number: | EDA337-022-524-208 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-022-524-208 |
| ECAD Model: | |
Description:

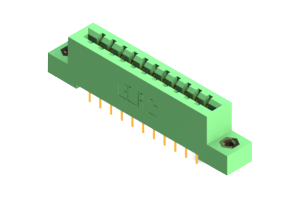

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 22 P.C Tail type contacts. The tails are .018"Sq' (0.46mm Sq') and .175" (4.45mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with #4-40 Unified Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-022-524-208, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. This green connector boasts a durable housing made of UL 94V-0 Thermoplastic Polyester, ensuring reliability in various operating environments. With two rows of copper alloy contacts, each rated for 3 A, this connector offers a total of 22 positions with a pitch of .156 inches. Its straight mount orientation and .2-inch row spacing make it easy to integrate into your PCB layout. Engineered for longevity, it has an operating temperature range of -40 to 105 °C. Whether you're working on consumer electronics or industrial applications, this Card Edge Connector is a dependable choice for your connectivity needs.
