| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-022-520-807 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 22 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 22 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-022-520-807 |
337-022-520-807
| ICC Number: | EDA337-022-520-807 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-022-520-807 |
| ECAD Model: | |
Description:

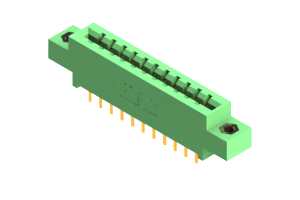

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 22 P.C Tail type contacts. The tails are .030" x .018" (0.76mm x 0.46mm) thick and .175" (4.45mm) long in a Double Row formation. The Insulator is Green in color and has .170" (4.32mm) Offset Mounting Lugs with M3-0.5 Metric Threaded Inserts.
More >>Specifications
Detailed Description
Introducing the 337-022-520-807, a high-performance Card Edge Connector designed for reliable board-to-board connections. With a vibrant Green color, this connector features two rows of 22 positions, allowing for seamless data transmission. Constructed with UL 94V-0 Thermoplastic Polyester housing and Copper Alloy contacts, it ensures durability and conductivity. Operating efficiently in a wide temperature range from -40 to 105 °C, it is suitable for various industrial applications. Its straight mount orientation and .156-inch pitch offer easy installation on PCBs. With a current rating of 3A, this connector is ideal for high-speed data and power applications. Add efficiency and quality to your projects with the 337-022-520-807 Card Edge Connector.
